PC7L64A is a highly integrated high performance brushless motor controller.The user can realize low cost and high flexibility when designing the motor control system. SPC7L64A is internally integrated with 6-channel NMOS pre-Driver, 2-channel LDO, multi-channel high-speed operational amplifier, multi-channel comparator, high-speed ADC, coprocessor, multiple general timer, UART, SPI and motor control special modules, etc. At the same time, the controller contains Cortex-M0 kernel, embedded 64K byte Flash memory and 6K byte RAM memory, with the highest working frequency up to 64MHZ, so it can meet the application requirements of high-performance brushless motor control system and reduce the system cost. Based on the above characteristics, SPC7L64A is very suitable for the requirements of high integration, excellent performance and low cost of high-speed vacuum cleaner control board.

Topology

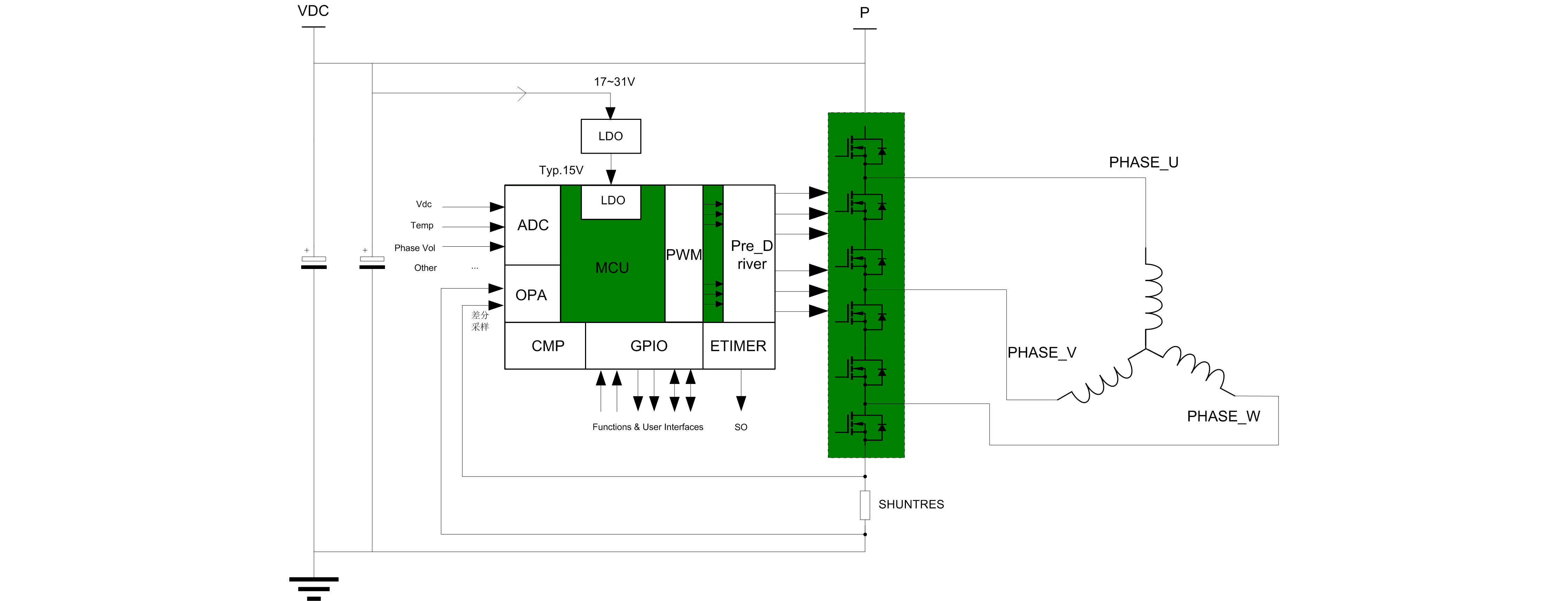

The typical topologies of high-speed vacuum cleaners based on sensorless vector control is as follows:

Product

Topological classification	product category	Typical product model	Typical package	product description
MCU IC	MCU IC	SPC7L64A	QFN-48-7×7×0.75-0.5	Highly integrated high performance blushless motor controller

Application&Information

title	Types of	Size (KB)	date	Download the latest Chinese version
SilanPro_User Manual	PDF	3072	2020-04-03	SilanPro_User Manual
SilanPro_Precautions for Use	PDF	658	2020-04-03	SilanPro_User Manual
SGTP5T60SD1D(F)(S)_Datasheet	PDF	425	2020-04-03	SGTP5T60SD1D(F)(S)_Datasheet
SDM06C60FB2_Datasheet	PDF	500	2020-04-03	SDM06C60FB2_Datasheet
SDH8322S_ Datasheet	PDF	315	2020-04-03	SDH8322S_ Datasheet
SDH2136_Datasheet	PDF	414	2020-04-03	SDH2136_Datasheet
SDH2106U_Datasheet	PDF	341	2020-04-03	SDH2106U_Datasheet
