SA1084

5A LDO VOLTAGE REGULATOR

Description Main feature Product specification classification Internal block diagram Relevant package outline drawing

The SA1084 is a positive low voltage dropout regulator, and the voltage dropout is 1.5V at 5A.

SA1084 provides two versions: fixed and adjustable versions. VOUT of fixed version has a tolerance of less than 1.5% for five kinds of output voltages 1.5V, 1.8V, 2.5V, 3.3V, 5.0V and 12.0V.

The SA1084 offers some key features include thermal shutdown and current limiting .The SA1084 is an excellent choice for use in various electronic equipments.

Main feature

1.5% accuracy in fixed version 1.5V,1.8V,2.5V,3.3V,5.0V,12.0V
and adjustable version
Low Dropout Voltage: 1.5V at 5A output current
Current Limiting: 6.5A
Thermal Shutdown
Line Regulation(Adj Version: Typical): 0.035%
Load Regulation ( Adj Version: Typical): 0.2%
Temperature Range: 0 to 125°C

Ordering Information

Product Name	Package form	Marking	Hazardous Substance Control	Packing Type

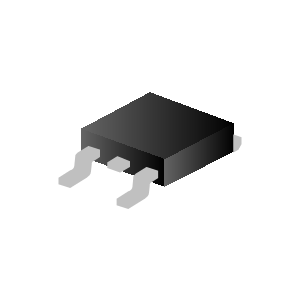

SA1084D-ADJ	TO-252-2L	SA1084D-ADJ	Halogen free	Tube
SA1084D-ADJTR	TO-252-2L	SA1084D-ADJ	Halogen free	Tape & Reel
SA1084D-1.5	TO-252-2L	SA1084D-1.5	Halogen free	Tube
SA1084D-1.5TR	TO-252-2L	SA1084D-1.5	Halogen free	Tape & Reel
SA1084D-1.8	TO-252-2L	SA1084D-1.8	Halogen free	Tube
SA1084D-1.8TR	TO-252-2L	SA1084D-1.8	Halogen free	Tape & Reel
SA1084D-2.5	TO-252-2L	SA1084D-2.5	Halogen free	Tube
SA1084D-2.5TR	TO-252-2L	SA1084D-2.5	Halogen free	Tape & Reel
SA1084D-3.3	TO-252-2L	SA1084D-3.3	Halogen free	Tube
SA1084D-3.3TR	TO-252-2L	SA1084D-3.3	Halogen free	Tape & Reel
SA1084D-5.0	TO-252-2L	SA1084D-5.0	Halogen free	Tube
SA1084D-5.0TR	TO-252-2L	SA1084D-5.0	Halogen free	Tape & Reel
SA1084D-12.0	TO-252-2L	SA1084D-12.0	Halogen free	Tube
SA1084D-12.0TR	TO-252-2L	SA1084D-12.0	Halogen free	Tape & Reel
SA1084S-ADJ	TO-263-3L	SA1084S-ADJ	Halogen free	Tube
SA1084S-ADJTR	TO-263-3L	SA1084S-ADJ	Halogen free	Tape & Reel
SA1084S-1.5	TO-263-3L	SA1084S-1.5	Halogen free	Tube
SA1084S-3.3TR	TO-263-3L	SA1084S-3.3	Halogen free	Tape & Reel
SA1084S-1.5TR	TO-263-3L	SA1084S-1.5	Halogen free	Tape & Reel
SA1084S-1.8	TO-263-3L	SA1084S-1.8	Halogen free	Tube
SA1084S-2.5	TO-263-3L	SA1084S-2.5	Halogen free	Tube
SA1084S-1.8TR	TO-263-3L	SA1084S-1.8	Halogen free	Tape & Reel
SA1084S-2.5TR	TO-263-3L	SA1084S-2.5	Halogen free	Tape & Reel
SA1084S-3.3	TO-263-3L	SA1084S-3.3	Halogen free	Tube
SA1084S-5.0	TO-263-3L	SA1084S-5.0	Halogen free	Tube
SA1084S-5.0TR	TO-263-3L	SA1084S-5.0	Halogen free	Tape & Reel
SA1084S-12.0	TO-263-3L	SA1084S-12.0	Halogen free	Tube
SA1084S-12.0TR	TO-263-3L	SA1084S-12.0	Halogen free	Tape & Reel

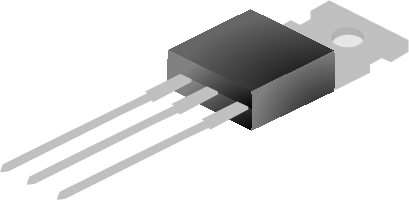

SA1084T-ADJ	TO-220-3L	SA1084T-ADJ	Pb free	Tube
SA1084T-1.5	TO-220-3L	SA1084T-1.5	Pb free	Tube
SA1084T-1.8	TO-220-3L	SA1084T-1.8	Pb free	Tube
SA1084T-2.5	TO-220-3L	SA1084T-2.5	Pb free	Tube
SA1084T-12.0	TO-220-3L	SA1084T-12.0	Pb free	Tube
SA1084T-3.3	TO-220-3L	SA1084T-3.3	Pb free	Tube
SA1084T-5.0	TO-220-3L	SA1084T-5.0	Pb free	Tube

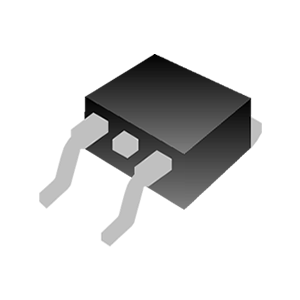

SA1084S2-ADJ	TO-263-2L	SA1084S2-ADJ	Halogen free	Tube
SA1084S2-ADJTR	TO-263-2L	SA1084S2-ADJ	Halogen free	Tape & Reel
SA1084S2-1.5	TO-263-2L	SA1084S2-1.5	Halogen free	Tube
SA1084S2-1.5TR	TO-263-2L	SA1084S2-1.5	Halogen free	Tape & Reel
SA1084S2-1.8	TO-263-2L	SA1084S2-1.8	Halogen free	Tube
SA1084S2-1.8TR	TO-263-2L	SA1084S2-1.8	Halogen free	Tape & Reel
SA1084S2-2.5	TO-263-2L	SA1084S2-2.5	Halogen free	Tube
SA1084S2-2.5TR	TO-263-2L	SA1084S2-2.5	Halogen free	Tape & Reel
SA1084S2-3.3	TO-263-2L	SA1084S2-3.3	Halogen free	Tube
SA1084S2-3.3TR	TO-263-2L	SA1084S2-3.3	Halogen free	Tape & Reel
SA1084S2-5.0	TO-263-2L	SA1084S2-5.0	Halogen free	Tube
SA1084S2-5.0TR	TO-263-2L	SA1084S2-5.0	Halogen free	Tape & Reel

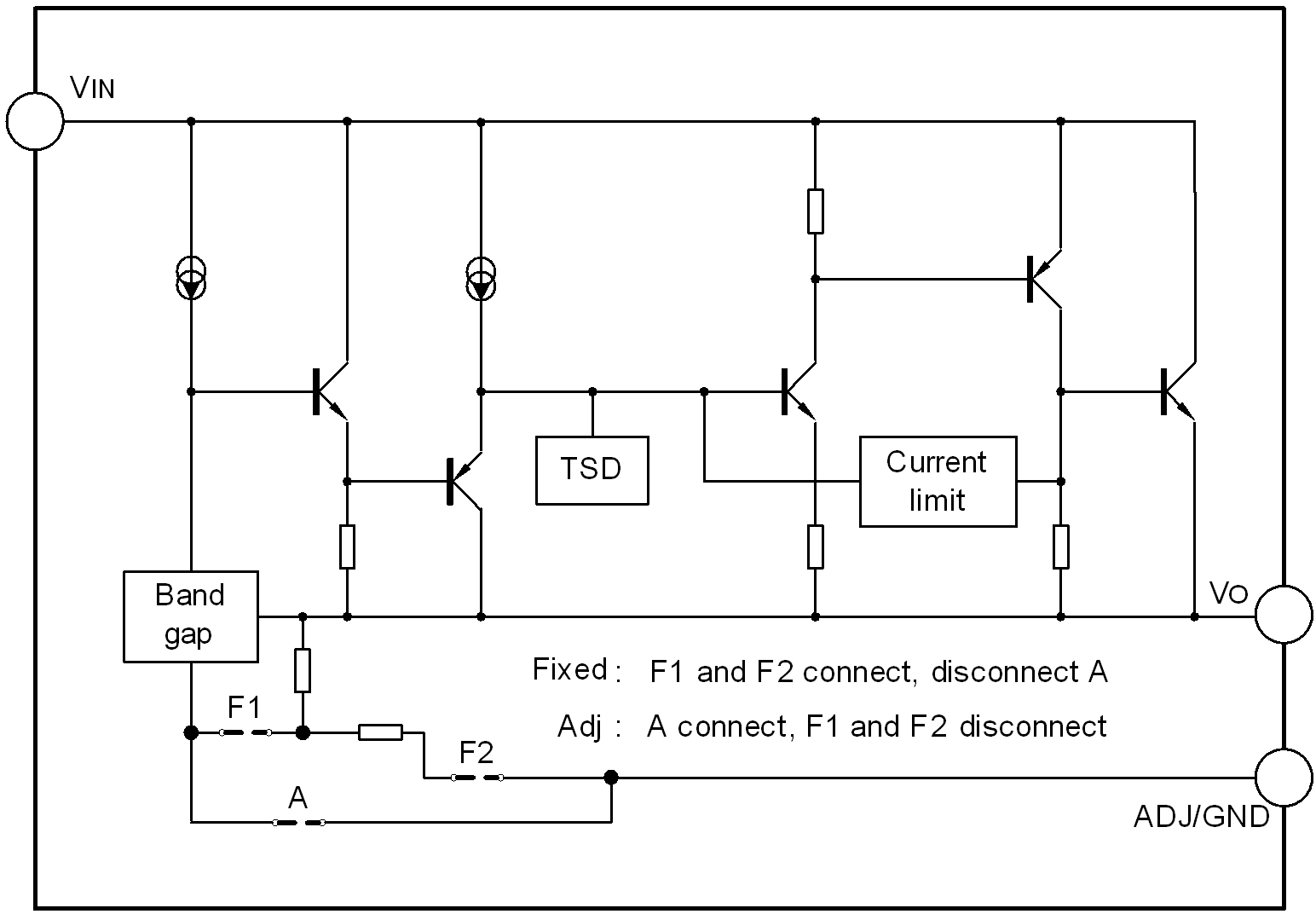

Block Diagram

Packages
