The SDH771XTN is a high accuracy LED constant current driver IC, it is applicable to non-isolated buck LED constant current power system with full AC input voltage range of 85VAC~265VAC.

The SDH771XTN creatively integrates 500V high-voltage power MOSFET, and a 600V freewheeling diode, which greatly simplifies the requirements for peripheral device; moreover, it integrates high-voltage power supply circuit, it is able to supply power to itself without any startup resistor or auxiliary winding, and at the same time, a conventional external power supply VCC capacitor is omitted, which greatly shortens the startup time as well as saves the system cost. The SDH771XTN works in inductor current boundary conduction mode, it uses a unique high-accuracy current sense technology, combined with internal compensation, can achieve high constant current accuracy and excellent line/load regulation.

It provides various protections, such as output short/open circuit protection, cycle-by-cycle over current protection, over temperature regulation, and open circuit protection for sensing resistor, which greatly improves the system safety and reliability. The open-circuit protection voltage can be set externally through the ROVP pin.

Main feature

Available 500V high voltage power MOSFET in one package with stable performance
Integrated 600V ultra-fast recovery diode
Integrated high-voltage power supply, without the need for any external starting resistor and V_CC capacitor
Accurate constant current threshold(<±3%)
Output short/open circuit protection
Open circuit protection threshold value external adjusted
Over temperature regulation
Over temperature protection
Cycle-by-cycle over current protection
No auxiliary winding

Ordering Information

Product Name	Package form	Marking	Hazardous Substance Control	Packing Type
SDH7712BTN	SOP-7-225-1.27	/	Halogen free	Tube
SDH7711TNTR	SOP-7-225-1.27	/	Halogen free	Tape&Reel
SDH7711ATN	SOP-7-225-1.27	/	Halogen free	Tube
SDH7711ATNTR	SOP-7-225-1.27	/	Halogen free	Tape&Reel
SDH7711TN	SOP-7-225-1.27	/	Halogen free	Tube
SDH7712BTNTR	SOP-7-225-1.27	/	Halogen free	Tape&Reel
SDH7712ATN	SOP-7-225-1.27	/	Halogen free	Tube
SDH7712ATNTR	SOP-7-225-1.27	/	Halogen free	Tape&Reel
SDH7712TN	SOP-7-225-1.27	/	Halogen free	Tube
SDH7712TNTR	SOP-7-225-1.27	/	Halogen free	Tape&Reel

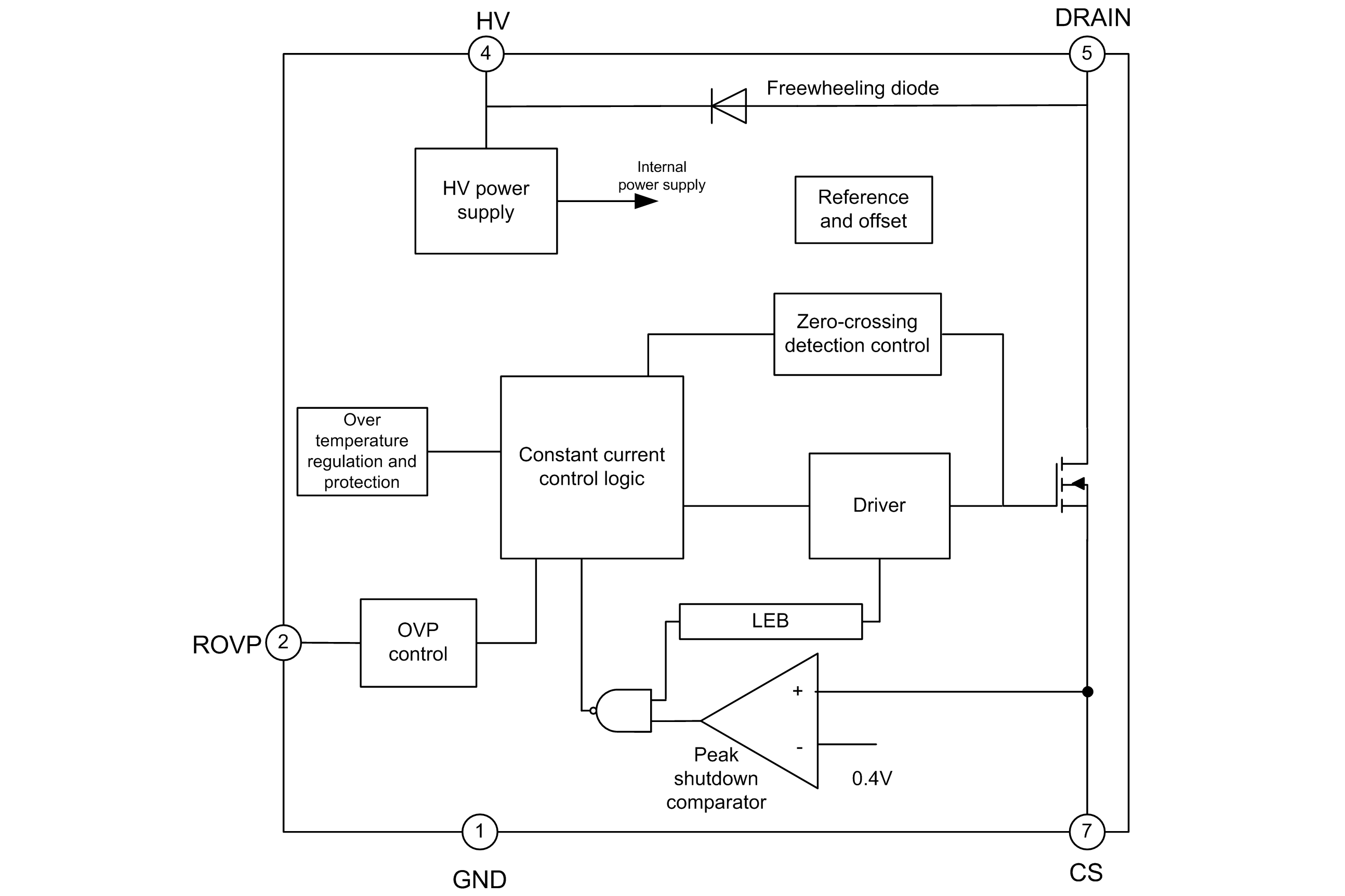

Block Diagram


Documents

title	Types of	Size (KB)	date	Download the latest English version
SDH771XTN		0	2022-08-23	SDH771XTN Brief Datasheet

Packages

SOP-7-225-1.27
